% 55 galvalum oluklu sac
Ödeme şekli: | L/C,T/T,Western Union |
---|---|
Incoterm: | FOB,CFR,CIF |
Min. sipariş: | 25 Ton |
Temel bilgi
model numarası.: steel sheet
Marka: WZH
Additional Info
Ambalaj: Standart denize uygun paket
Verimlilik: 10 ton per day
Ulaşım: Ocean
Menşe yeri: Çin
Desteklemek: 10 tons per day
Sertifika: ISO 9001:2008
HS Kodu: 72107000
Liman: Tianjin
Ödeme şekli: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Ürün Açıklaması

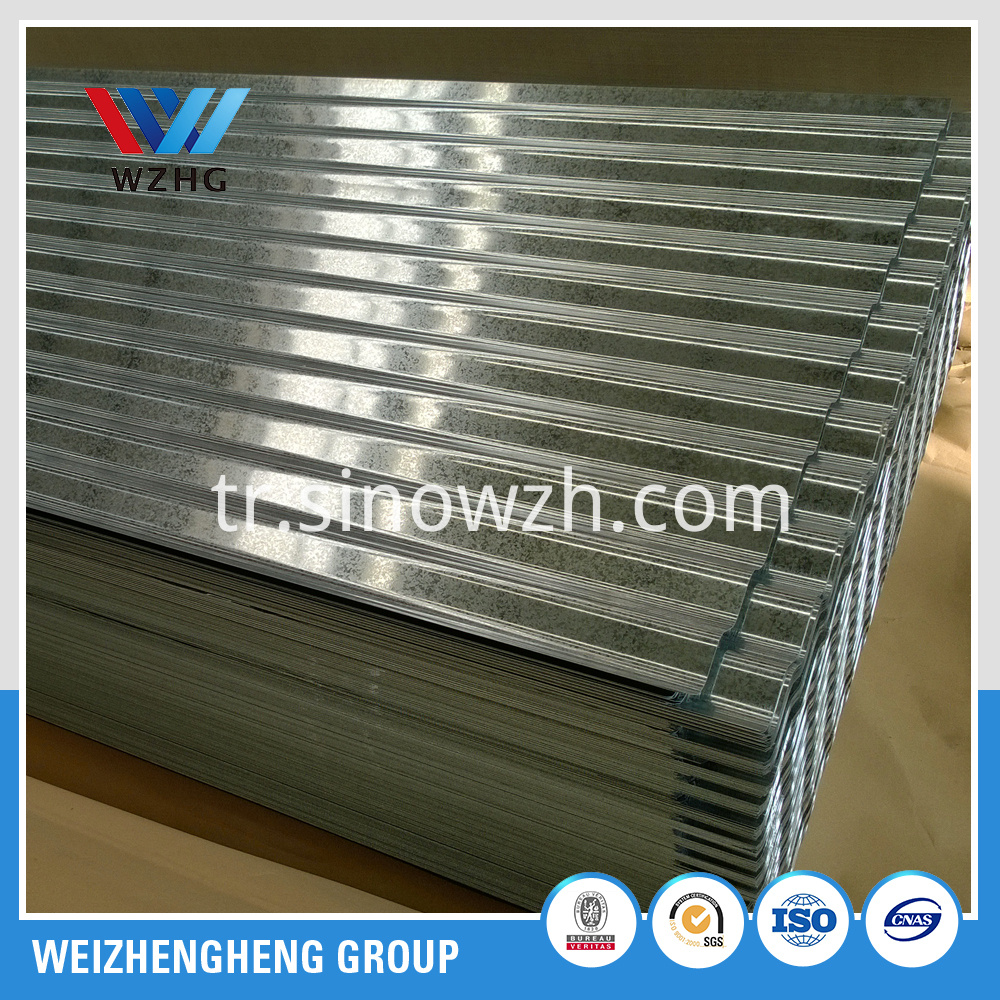

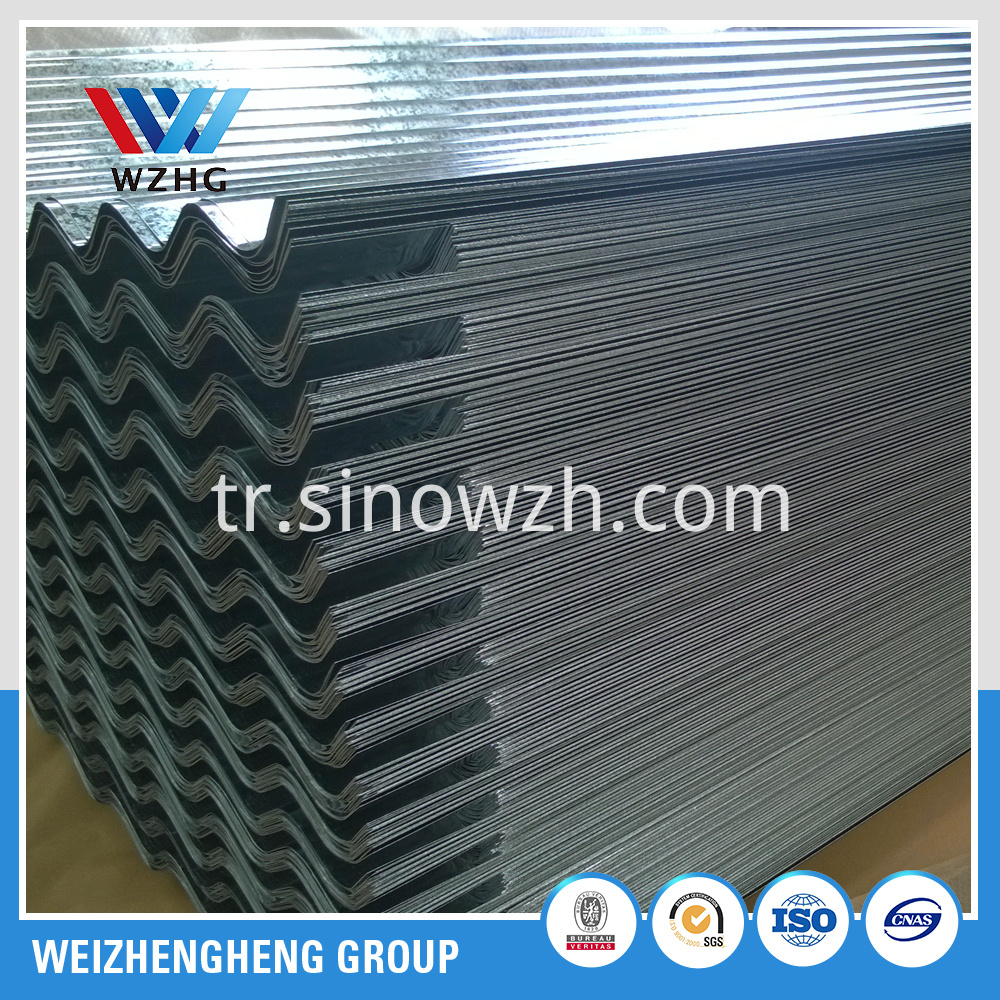

Galvalume, aluzinc çelik sac g550
Sıcak daldırma galvalume bobini mükemmel şekillendirme özelliklerine sahiptir ve şekillendirme, presleme ve bükme ile imalat için uygundur. Uygulamalar arasında ev aletleri, bina uygulamaları (ör. Duvar elemanları, çatı kaplama, otomotiv parçaları (örn. Alt yapı), aydınlatma armatürleri, variller ve çeşitli bölümler ve profilli levhalar bulunmaktadır.
Commodity |
Galvanized steel sheet roof / roofing sheet / Galvanized steel coil |
Techinical Standard: |
ASTM/GB |
Grade |
SGCC, DX51D |
Types |
HDGI |
Thickness |
0.13-0.6mm |
Width before corrugated |
762-1000mm |
Width after corrugated |
665-914mm |
Length |
1800-4000mm |
Zinc coating |
Z60-180 g/m2 |
Spangle |
None/ Regular/Big spangle |
Sheet weight |
2-2.5MT/package |
Profile model |
YX18-76-665/ YX18-76-800 / YX18-76-900/ YX12-65-850 |
Application |
For construction building roof or wall cladding |
Price terms |
FOB, CFR, CIF |
Payment terms |
30%TT in advance+70% TT or irrevocable 70%L/C at sight |
Delivery time |
25 to 35 days after recepit of 30% TT |
Remarks |
Insurance is all risks |
MTC will be handed on with shipping documents |
|
We accept SGS or BV certificatation test |
GI düz levha, plian gi levha fiyatı / Galvanizli çelik fiyatı
Shape | plain or corrugation |
Advantage |
waterproof, fireproof, light weight, easy installation and beautiful appearance. |
Width range | 665mm to 1250mm |
Zinc coating range | Z40-Z275 |
The thickness range | 0.14mm to 2.0mm |
Length per shee trange |
1 meter to 4 meter |
Loading and Shipping | |
we have professional work and machine to make sure goods not change shape when goods loading into containers. |
|
Produce Process |
|
step 1). cold rolled steel coiL step 2). galvanized steel coil/galvalumed steel coil step 3). cuting steel coil into steel sheet step 4). rolling steel sheet in to corrugated sheet |
GI çelik bobin ve galvanizli çelik bobin
Mechanical Properties |
|||
Grade |
Yield Strength MPa |
Tensile Strength MPa |
Elongation % |
SGCC(DX51D+AZ) |
≥205 |
≥270 |
≥22 |
SGCD(DX52D+AZ) |
≥140 |
≥270 |
≥38 |
S250GD+AZ |
≥250 |
≥330 |
≥19 |
S350GD+AZ |
≥350 |
≥420 |
≥16 |
Ürün kategorileri : Çelik Sac ve çelik levha > Galvanizli çelik sac
